- 32.5MP APS-C CMOS Sensor
- Dual Pixel CMOS AF II
- 4K60 10-Bit Video, HDR-PQ & C-Log 3
- 30 fps E. Shutter, 15 fps Mech. Shutter
- 2.36m-Dot OLED EVF
- 1.6m-Dot Vari-Angle Touchscreen LCD
- Sensor-Shift 5-Axis Image Stabilization
- Dual UHS-II Memory Card Slots
- Multi-Function Shoe, Wi-Fi and Bluetooth

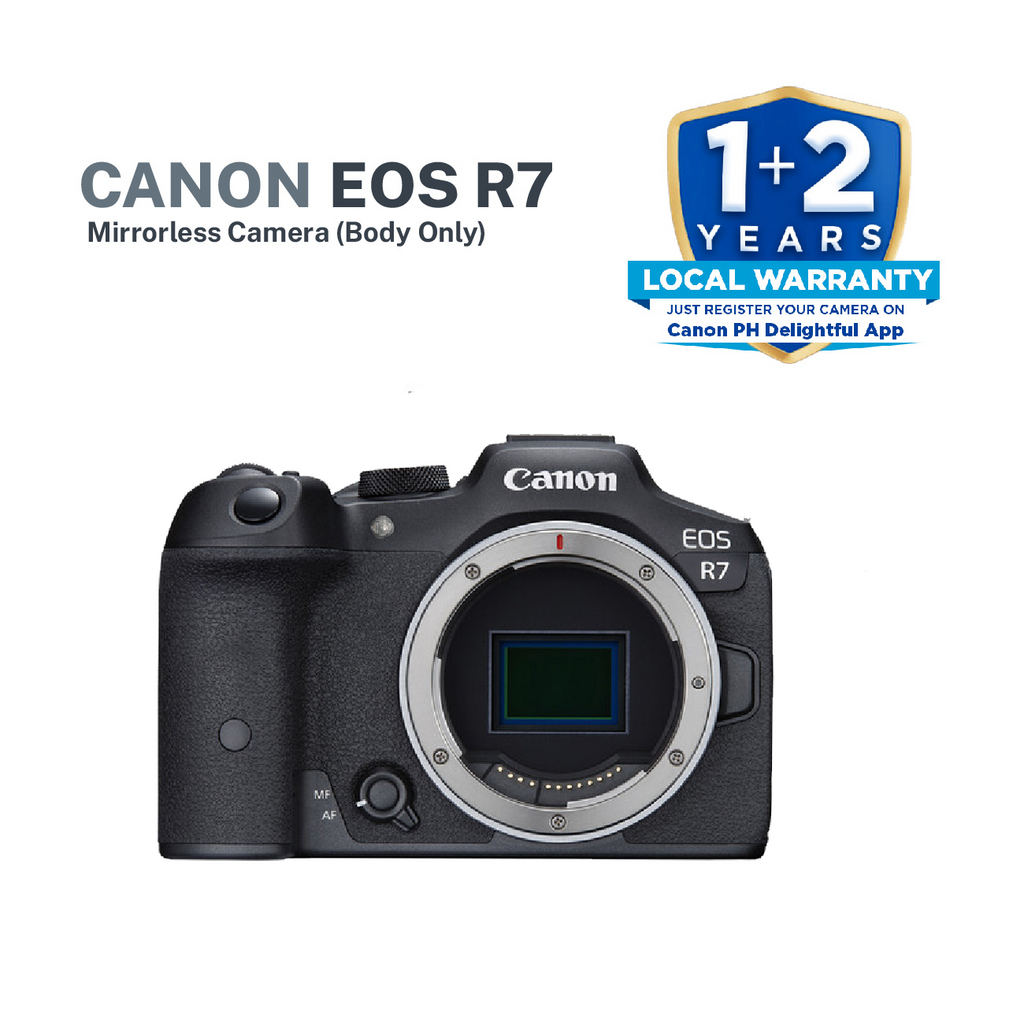

An ideal blend of performance and portability, the EOS R7 represents Canon's move into APS-C with the mirrorless R system. Featuring a 32.5MP CMOS sensor and DIGIC X processing, this sleek powerhouse is capable of high-speed 30 fps shooting for sports and wildlife and features the renowned Dual Pixel CMOS AF II focusing system to keep up with and track fast-moving subjects. And, for the multimedia image-maker, 4K video is supported at up to 60p, or 30p when oversampled from a 7K area, as well as Full HD at up to 120 fps.
32.5MP APS-C CMOS Sensor and DIGIC X Processing
APS-C Comes to EOS R
Balancing resolution, speed, and low-light performance, the 32.5MP APS-C CMOS sensor is a versatile chip perfect for both photo and video applications. As one of the first APS-C sensors in the EOS R system, the R7's high-resolution design benefits photographers as well as 4K video by providing a 7K area for oversampling footage, which yields improved sharpness and quality.
DIGIC X ProcessorBorrowed from the R3, the R7 sports a DIGIC X image processor to perform a variety of high-speed tasks, ranging from quick continuous shooting to high-resolution video recording. In terms of high-speed shooting, the R7 supports up to 30 fps continuous shooting with a silent electronic shutter or 15 fps with a mechanical shutter, with AF and AE readings before each frame. The processor also helps to realize a broad sensitivity range from ISO 100-32000, which is expandable up to ISO 51200 for working in difficult lighting conditions.
UHD 4K Video Recording
Beyond stills, the R7's sensor also offers high-res UHD 4K 60p internal video using the full width of the sensor and the ability to work with 10-bit sampling with Canon Log 3. A 7K recording area can also be used for oversampled 4K shooting at 30p for improved sharpness, reduced moiré, and lower noise. And, for slow-motion playback, 120p recording is supported at up to Full HD resolution.
HDR-PQ recording is possible, too, for in-camera HDR production and external recording, via the micro-HDMI port, which supports a clean 4K output at up to 60 fps. Also, unlimited recording times are possible, too, and the R7 features both mic and headphone ports, as well as a multi-function shoe for wide accessories compatibility.
Autofocus and Image Stabilization
Dual Pixel CMOS AF II
Carried over from the EOS R3, the advanced Dual Pixel CMOS AF II system features 651 automatic AF points that covers the entire sensor area, for faster, more responsive, and more precise focusing performance. This phase-detection focusing system also has enhanced subject detection and tracking, with the ability to intelligently recognize people, animals, and vehicles and tracking will automatically lock onto these subjects and maintain sharp focus throughout burst captures. Dual Pixel AF II's low-luminance limit focuses down to an impressive -5 EV for accurate focusing even in nighttime conditions.
Sensor-Shift Image Stabilizer
An In-Body Image Stabilizer (IBIS) corrects up to 7 stops of unwanted camera shake when shooting handheld, helping to shoot handheld in low-light conditions and reduce shake when recording videos. This 5-axis system can be also used in conjunction with lenses featuring optical image stabilization to compensate for up to 8 stops of camera shake depending on the specific lens in use.
2.36m-Dot EVF and Vari-Angle Touchscreen LCD
In addition to the EVF, a 3.0" vari-angle LCD is also available and benefits working high, low, and front-facing angles. The flexible position is complemented by a touchscreen interface and the clear 1.62m-dot resolution allows for vivid playback and live view monitoring.
Reliable and Intuitive Construction
- Referencing the professional-grade EOS R3, the R7 is modeled after its robust physical design and sports a dust- and moisture-sealed body construction that's suitable for working in inclement conditions.
- Redesigned rear controls include a combined AF point selector and rear control wheel, which puts two of the most oft-used controls in a single intuitive-to-reach spot.
- Dual SD memory card slots offer file-saving flexibility and both are rated for UHS-II card speeds to support fluent 4K video recording and high-speed continuous shooting.
Wired and wireless connectivity options are available, allowing for multiple methods of transferring photos and videos, as well as for remotely controlling the camera. Physically, the camera features a USB Type-C 3.2 Gen 2 port along and a micro-HDMI port, along with 3.5mm headphone and microphone ports to benefit video recording. In terms of wireless, 2.4GHz Wi-Fi and Bluetooth is available for transferring and remote camera control.
Next-Generation Multi-Function Shoe
An update to a conventional hot shoe, the Multi-Function Shoe adds a row of pins at the front of the design to permit greater accessory functionality as well as provide power to select accessory types that traditionally rely on separate batteries. This updated shoe is compatible with select accessories, including the ST-E10 Speedlite Transmitter, DM-E1D Stereo Microphone, and AD-P1 Smartphone Link Adapter, as well as the AD-E1 Multi-Function Shoe Adapter to provide compatibility with legacy shoe-mounted accessories.
|Lens Mount||Canon RF|
|Sensor Resolution||Actual: 34.4 Megapixel
Effective: 32.5 Megapixel
|Sensor Type||22.3 x 14.8 mm (APS-C) CMOS|
|Image Stabilization||Sensor-Shift, 5-Axis|
|Built-In ND Filter||None|
|Capture Type||Stills & Video|
|Shutter Type||Electronic Shutter, Mechanical Focal Plane Shutter|
|Shutter Speed||Mechanical Shutter
1/8000 to 30 Seconds
1/16000 to 30 Seconds
|Bulb/Time Mode||Bulb Mode|
100 to 32,000 in Manual, Auto Mode (Extended: 100 to 51,200)
|Metering Method||Center-Weighted Average, Evaluative, Partial, Spot|
|Exposure Modes||Aperture Priority, Manual, Program, Shutter Priority|
|Exposure Compensation||-3 to +3 EV (1/3, 1/2 EV Steps)|
|Metering Range||-2 to 20 EV|
|White Balance||Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten|
|Continuous Shooting||Electronic Shutter
Up to 30 fps at 32.5 MP for up to 126 Frames (JPEG) / 42 Frames (Raw)
Up to 15 fps at 32.5 MP for up to 224 Frames (JPEG) / 51 Frames (Raw)
Still Image Capture
|Aspect Ratio||1:1, 3:2, 4:3, 16:9|
|Image File Format||C-RAW, HEIF, JPEG, Raw|
Internal Video Capture
|Recording Modes||H.265/MP4 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p
Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p
H.264/MP4 4:2:0 8-Bit
UHD 4K (3840 x 2160) up to 23.98p/25p/29.97p/50p/59.94p
Full HD (1920 x 1080) up to 23.98p/25p/29.97p/50p/59.94p/100p/119.88p
|Gamma Curve||Canon Log 3, HDR-PQ|
|Built-In Microphone Type||Stereo|
|Audio Recording||MP4: 2-Channel AAC Audio
MP4: 2-Channel LPCM Audio
External Video Capture
|Media/Memory Card Slot||Dual Slot: SD/SDHC/SDXC (UHS-II)|
|Video I/O||1 x Micro-HDMI Output|
|Audio I/O||1 x 1/8" / 3.5 mm TRS Stereo Headphone Input
1 x 1/8" / 3.5 mm TRS Stereo Microphone Output
|Other I/O||1 x USB Type-C (USB 3.2 / 3.1 Gen 2) Input/Output|
|Wireless||2.4 GHz Wi-Fi (802.11b/g)
|Global Positioning (GPS, GLONASS, etc.)||None|
|Display Type||Free-Angle Tilting Touchscreen LCD|
|Type||Built-In Electronic (OLED)|
|Eye Point||22 mm|
|Diopter Adjustment||-4 to +2|
|Focus Type||Auto and Manual Focus|
|Focus Mode||Continuous-Servo AF, Manual Focus, Single-Servo AF|
|Autofocus Points||Photo, Video
Phase Detection: 651
|Autofocus Sensitivity||-5 to +20 EV|
|Maximum Sync Speed||1/320 Second|
|Flash Compensation||-3 to +3 EV (1/3, 1/2 EV Steps)|
|Dedicated Flash System||eTTL|
|External Flash Connection||Hot Shoe|
|Operating Temperature||32 to 104°F / 0 to 40°C|
|Operating Humidity||0 to 85%|
|Battery Type||1 x LP-E6NH Rechargeable Lithium-Ion|
|Tripod Mounting Thread||1 x 1/4"-20 Female (Bottom)|
|Dimensions (W x H x D)||5.2 x 3.6 x 3.6" / 132 x 90.4 x 91.7 mm|
|Weight||1.2 lb / 530 g (Body Only)
1.3 lb / 612 g (With Battery, Recording Media)
|Package Weight||2.59 lb|
|Box Dimensions (LxWxH)||11.5 x 7.5 x 6.1"|
