Key Features:
- Lightweight & Intuitive, Compact Storage
- 4TX + 8RX Capability & Four-Channel Output
- Adaptive Gain Control for Balanced Volume
- Three Voice Tone Presets, Two-Level Noise Cancelling
- Dual Band Anti-Interference, Lossless Audio Transmission
- Dual-File 32-bit Float Internal Recording
- Integrated Timecode for Seamless Editing
- Extended Operating Time & Fast Charging
Product Specifications:

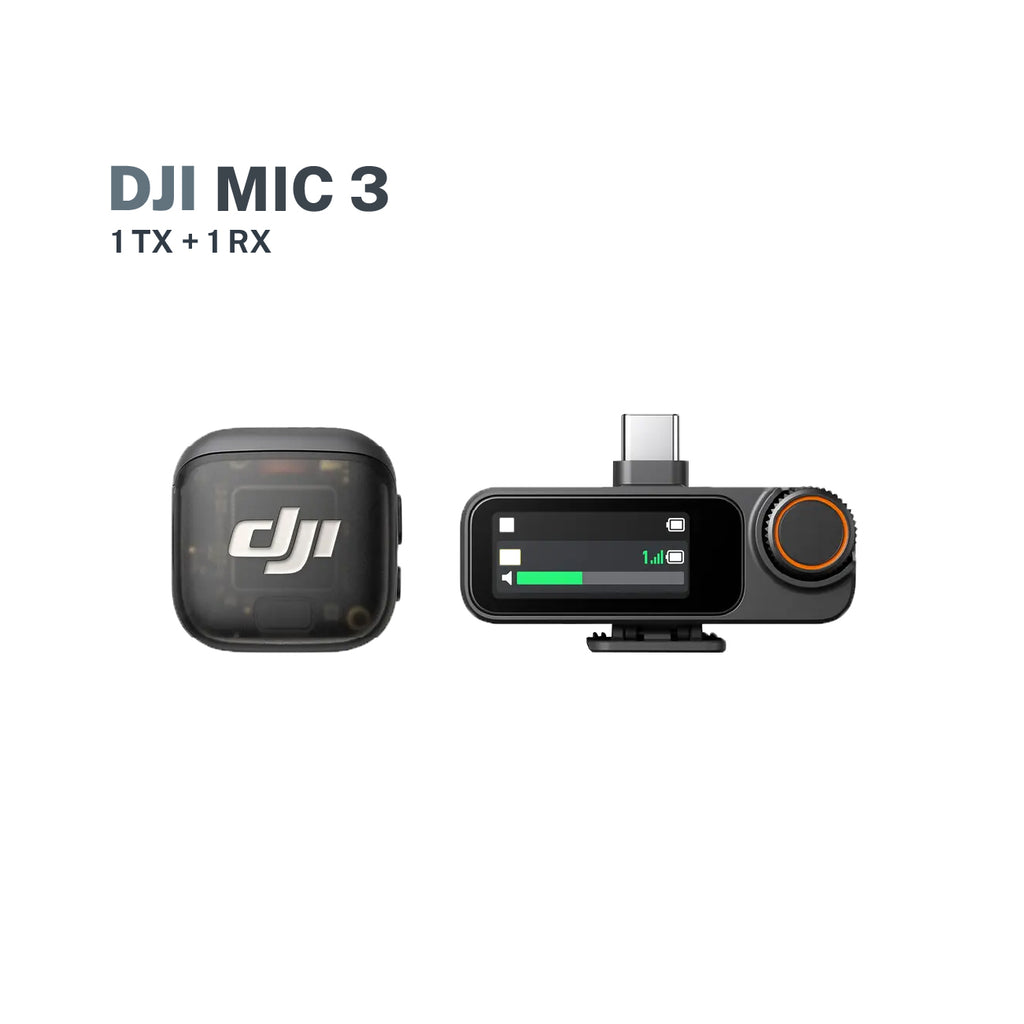

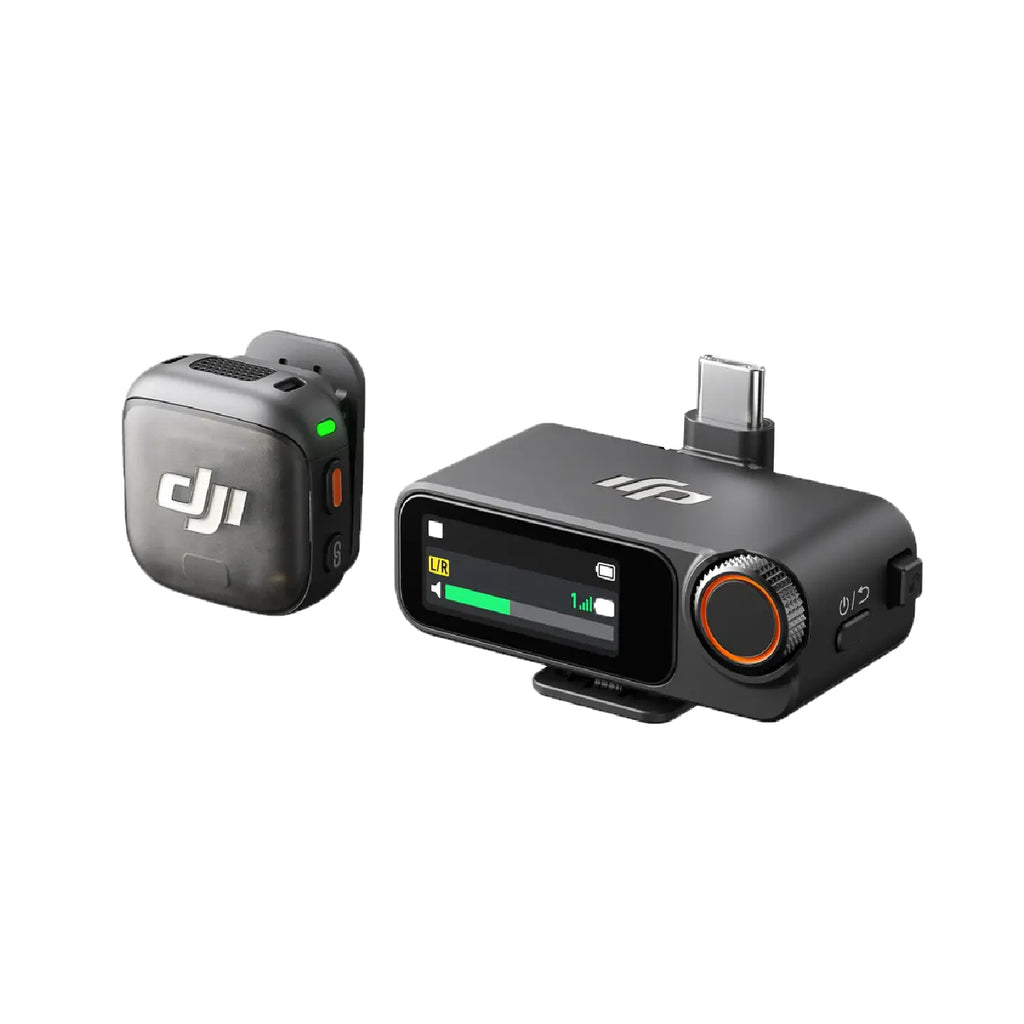

DJI Mic 3 Transmitter
Model
- DMT03
Dimensions
- 28.77×28.34×16.35 mm (L×W×H) (with magnet)
Weight
- 16 g (with magnet)
Wireless Mode
- Wi-Fi: 802.11 a/b/g/n/ac/ax
SDR: Customizable
Equivalent Isotropic Radiated Power (EIRP)
- Wi-Fi:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)
SDR:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Wireless Mode Operating Frequency
- Wi-Fi:
2.400-2.4835 GHz
5.725-5.850 GHz
SDR:
2.400-2.4835 GHz
5.150-5.250 GHz
5.250-5.350 GHz
5.470-5.725 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Bluetooth Protocol
- Bluetooth 5.4
Bluetooth Operating Frequency
- 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)
- BLE: < 10 dBm
BR/EDR: < 20 dBm
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Battery Type
- Li-ion
Battery Capacity
- 137 mAh
Battery Energy
- 0.531 Wh
Battery Voltage
- 3.87 V
Charging Specification
- Max 5 V
Charging Temperature
- 5° to 45° C (41° to 113° F)
Operating Temperature
- -10° to 45° C (14° to 113° F)
Charging Time
- Approx. 50 minutes
Operating Time
- 8 hours
Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.
Internal Recording Available Duration
- 24-bit (single file): 57.3 hours
24-bit (dual file): 28.6 hours
32-bit float (single file): 43.0 hours
32-bit float (dual file): 21.5 hours

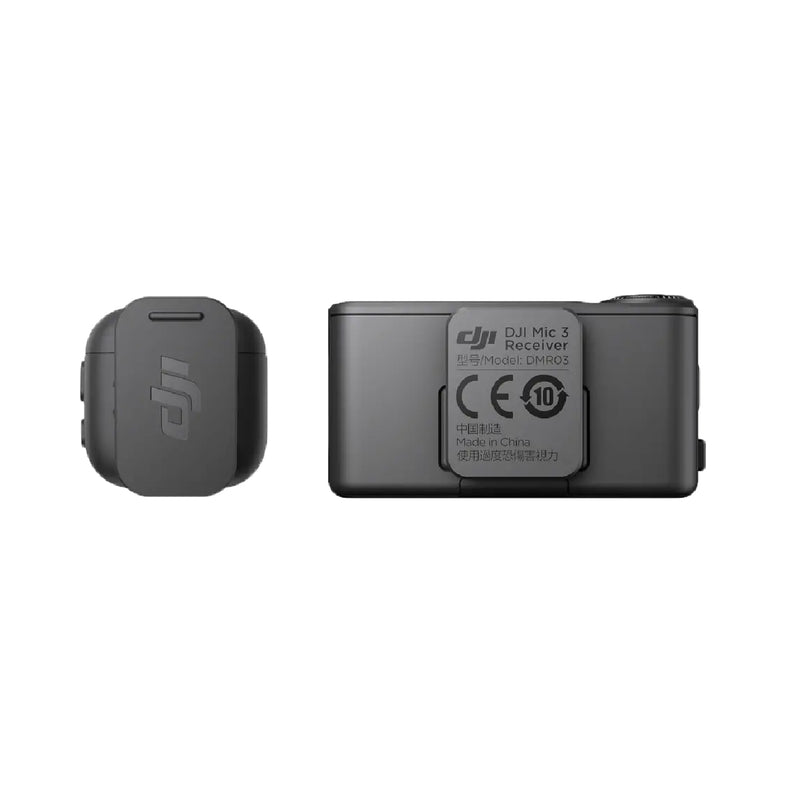

DJI Mic 3 Receiver
Model
- DMR03
Dimensions
- 53.85×28.69×22.00 mm (L×W×H)
Weight
- 25.1 g
Wireless Mode
- Wi-Fi: 802.11 a/b/g/n/ac/ax
SDR: Customizable
Equivalent Isotropic Radiated Power (EIRP)
- Wi-Fi:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)
SDR:
2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Operating Frequency
- Wi-Fi:
2.400-2.4835 GHz
5.725-5.850 GHz
SDR:
2.400-2.4835 GHz
5.150-5.250 GHz
5.250-5.350 GHz
5.470-5.725 GHz
5.725-5.850 GHz
Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
Bluetooth Protocol
- Bluetooth 5.4
Bluetooth Operating Frequency
- 2.400-2.4835 GHz
Bluetooth Transmitter Power (EIRP)
- BLE: < 10 dBm
Battery Type
- Li-ion
Battery Capacity
- 275 mAh
Battery Energy
- 1.065 Wh
Battery Voltage
- 3.87 V
Charging Specification
- Max 5 V
Charging Temperature
- 5° to 45° C (41° to 113° F)
Operating Temperature
- -10° to 45° C (14° to 113° F)
Charging Time
- Approx. 50 minutes
Operating Time
- 10 hours
Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable.
