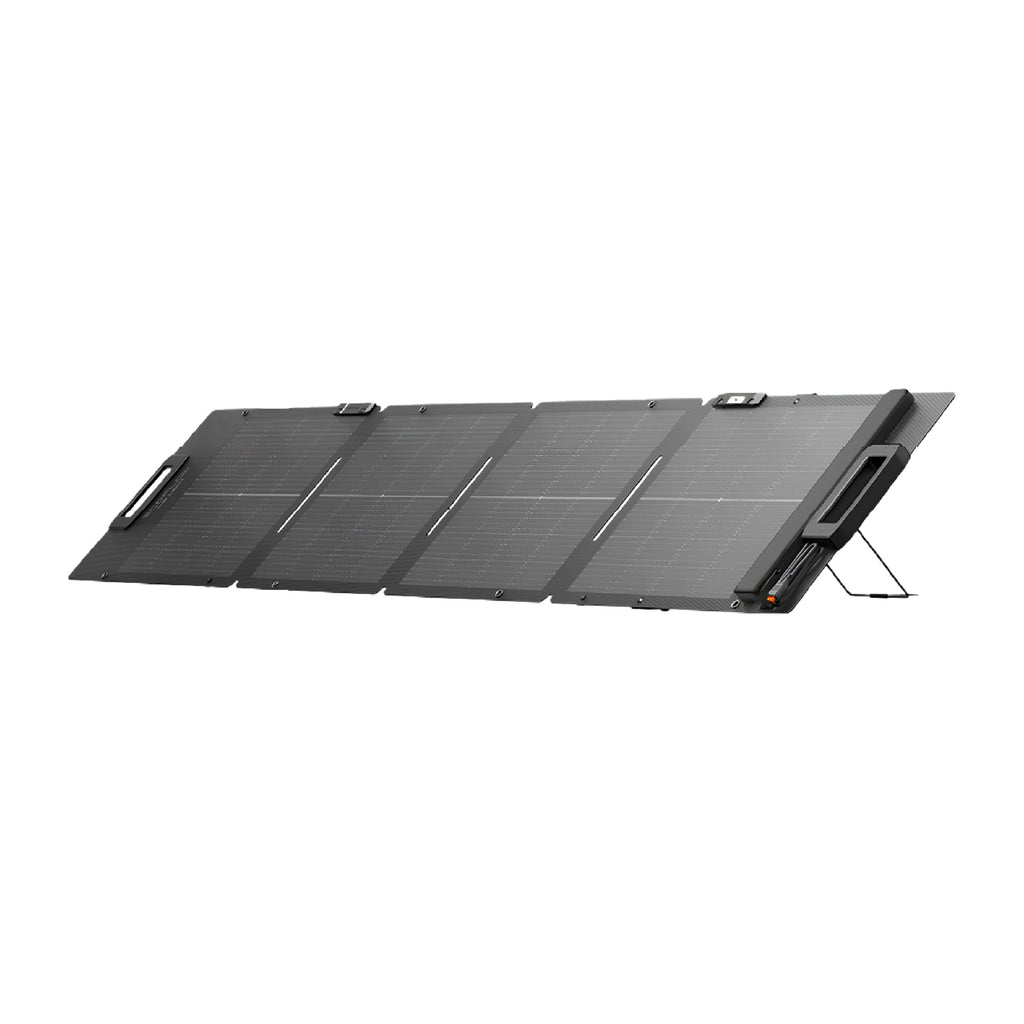

The EcoFlow 110W solar panel is an efficient, foldable solar panel, with which energy can easily be generated. The panel is equipped with efficient monocrystalline solar cells, allowing you to charge all your electrical devices without interruption via a portable power station or battery.

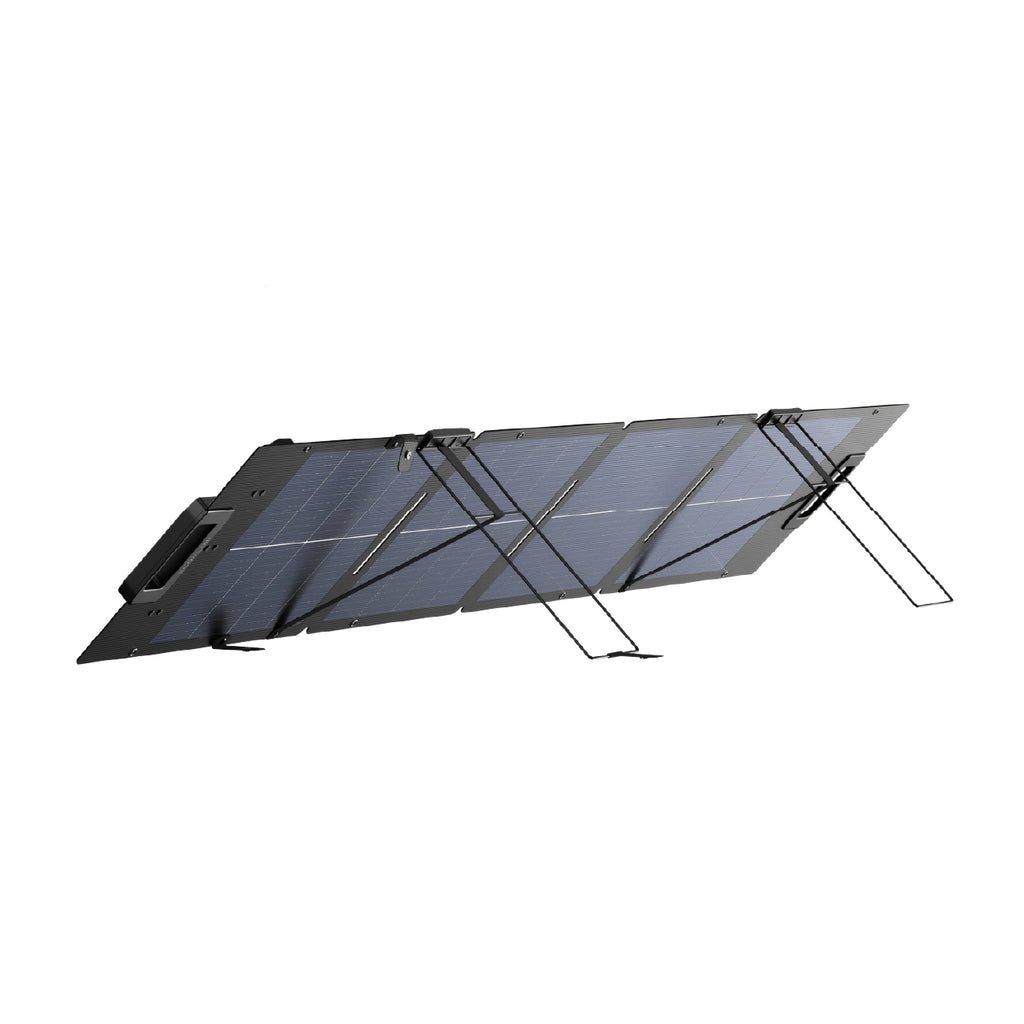

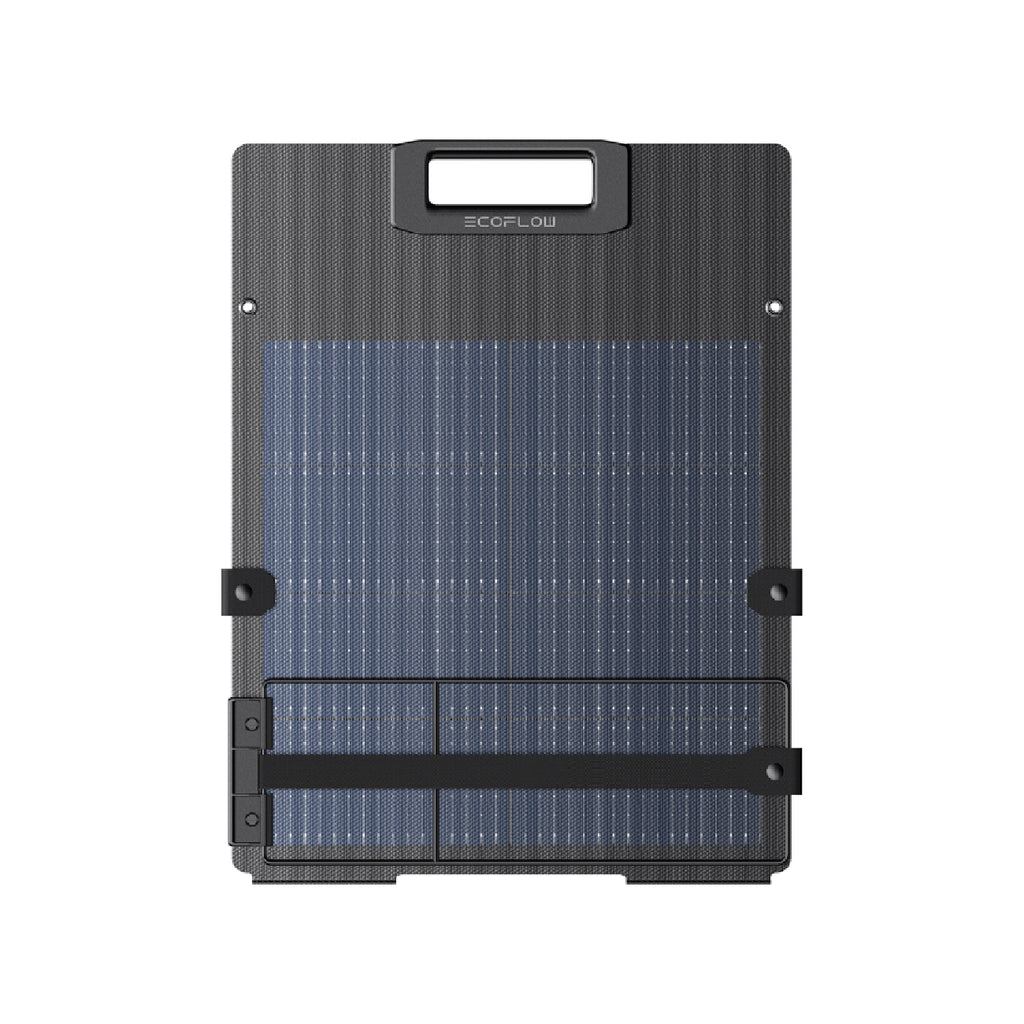

The design of the folding panel is unique due to the supplied protective cover/kickstand. This makes it possible to point the EcoFlow panel at a 60 or 90-degree angle to the sun. The EcoFlow 110W panel has an MC4 output. With the EcoFlow MC4 to XT60 Cable, the solar panel can be connected directly to the power stations from EcoFlow. It is also possible to connect the panel to a Goal Zero Yeti portable power station. Use the MC4 to 8mm adapter for this.
The 110W solar panel is suitable for all stand-alone battery applications. Think of holiday homes, (sailing) boats, campers and caravans.
Product Specifications:
| Brand |
Ecoflow |
| Cell type |
Monocrystalline (22%-23% efficiency) |
| Power |
110 W |
| Voc - Voltage open circuit |
21,8 V |
| Imp - Ampere maximum power |
6 A |
| Vmp - Voltage maximum power |
18,4 V |
| Isc - Ampere short circuit |
6,5 A |
| Type of output |
MC4 Port |
| Waterproof |
IP68 |
| Weatherproof |
Ja (IP68) |
| Dimensions |
Folded: 42 x 178,5 x 2,5 cm
Unfolded: 42 x 48 x 2,5 cm |
| Weight |
4 kg |
| Material |
Monocrystalline Silicon |
1. How much power can the 110 W Portable Solar Panel generate under normal conditions?
This depends first and foremost on weather conditions. Generally speaking, on a clear day with no clouds in the sky, sunlight hitting the panel at a 90° angle usually generates 70 W–80 W of power in the 110 W panel (current light conditions are normally 800–900 W/m2 (74.3–83.6 W/ft2) with a panel temperature of 50°C (32°F) under test conditions.
2. How do I mount the 110W Portable Solar Panel?
With pre-cut eyelets, the flexible solar panel can be hung with hooks or can be securely attached to a surface using an adhesive.
3. Is the 110W Portable Solar Panel durable?
The 110W portable solar panel can capture solar energy through even the heaviest rain. With a protective ETFE film, the panel’s solar cells can withstand many environments, from humid to dry.
Each of the 182 monocrystalline silicon cells is made using an advanced glass fiber and lamination process, protecting the panel and enhancing performance.
*Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)
4. How heavy is the 110W Portable Solar Panel?
This Panel Weighs only 4kg
5. Can the Portable Power Station Be Used While Using the Solar Panel?
Yes. Once your EcoFlow PV panel is hooked up to your portable power station during daylight hours, it will start recharging immediately and continue to charge even when operating. If your portable power station is fully discharged, it will take some time for your portable solar panel to generate enough energy for the PPS to function. One option is to fully recharge your PPS using household electricity before hitting the road. EcoFlow’s EcoFlow RIVER 2 series can recharge from 0-100% in 60 mins or less. Or you can recharge using your car adaptor en route to your destination. Starting with a fully-charged PPS and topping up with solar off-grid is a highly effective solution in many use cases.
6. What Is the Best Way to Clean EcoFlow’s 110W Portable Solar Panel?
The IP 68 rating means that our solar panels are hyper-resistant to dust and water, which protects the delicate inner circuitry and monocrystalline photovoltaic cells. If your panels could benefit from a polish, a soft rag, water, and biodegradable soap is enough to get them sparkling again. Never use harsh chemicals that could damage the cells.
7. What connection does the EcoFlow 110W solar panel use?
The EcoFlow 110W Portable Solar Panel uses MC4 connectors and can be connected using the the XT-60 to MC4 solar charging cable to charge your powerstation or smart device.
8. Does the EcoFlow 110W Solar Panel Produce 110W of Electricity All Day Long?
No. The rated power of any solar panel is determined by the maximum amount of electricity it can produce in an hour under ideal laboratory conditions. In the real world, environmental factors mean that no solar panel will achieve its full-rated power on a consistent basis. Factors that can negatively impact solar energy production include shade, temperature, the panel’s angle, and the sun’s position over the course of a day.
Having said that, you don’t need to receive direct sunlight to benefit from electricity generation during daylight. The EcoFlow 110W portable solar panel’s premium monocrystalline silicon cells can absorb power even in overcast conditions, ensuring energy output all day long.
9. How to Make the 110W Portable Solar Panel Last Longer?
Although EcoFlow solar panels are highly durable, good upkeep is advisable to make your EcoFlow 110W panel last longer. Cleaning lets the PV cells absorb more light, and proper use prevents issues like reverse feeding. ETFE film and an IP68 rating make this panel one of the longest-lasting portable options on the market. A light polish with a soft rag, biodegradable soap, and water is the only maintenance your EcoFlow portable solar panel should ever require. Never use harsh chemicals to clean your solar panels.
