Product Overview

Description

Product Specifications:

Capacity: 6144Wh

Expandable Capacity: Up to 30kWh (5 × DPU Battery)

AC Output: 6900W

AC Charging Input: 220–240V~30A, 50/60Hz

UPS: Backup UPS with <20 ms switchover time

DC Output:USB-A ×2: 5V⎓2.4A, 12W maxUSB-C ×2: 5V/9V/12V/15V/20V⎓5A, 100W maxAnderson Port: 12.6V⎓, 30A, 378W max

Solar Charging Input:Total: 5600WHigh-PV Input: 80–450V/15A, 4000W maxLow-PV Input: 30–150V/15A, 1600W max

Connection: Bluetooth, Wi-Fi, and 4G

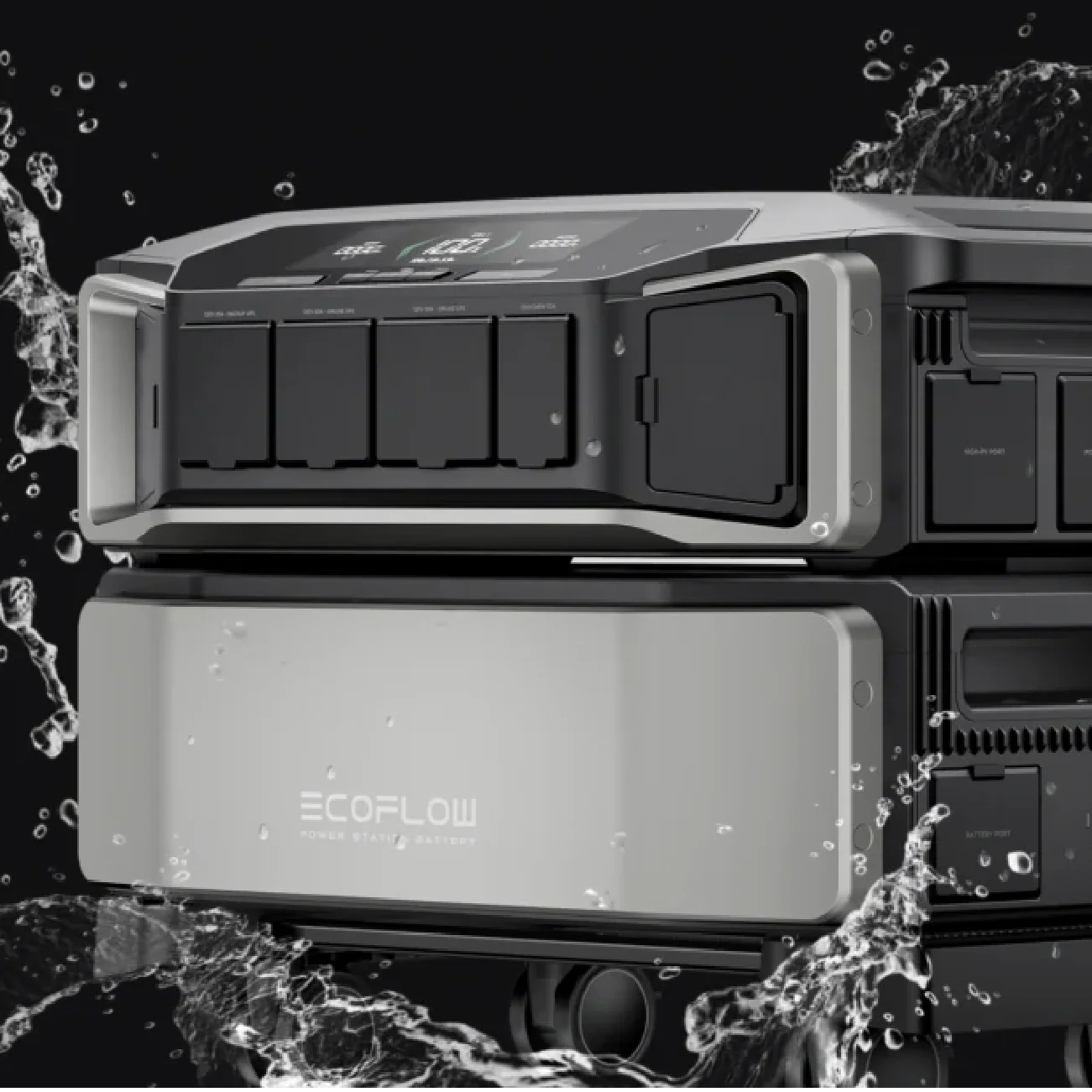

Protection Level: IP54

Inverter Dimensions: 690 × 481 × 214 mm

Battery Dimensions: 660 × 455 × 204 mm

Inverter Net Weight: 32.1 kg

Battery Net Weight: 52.7 kg

Battery Chemistry: LFP (Lithium Iron Phosphate)

Operating Temperature:Charging: -20°C to 45°C (self-heating activates below 0°C; no derating below 40°C)Discharging: -20°C to 45°C

What's Included

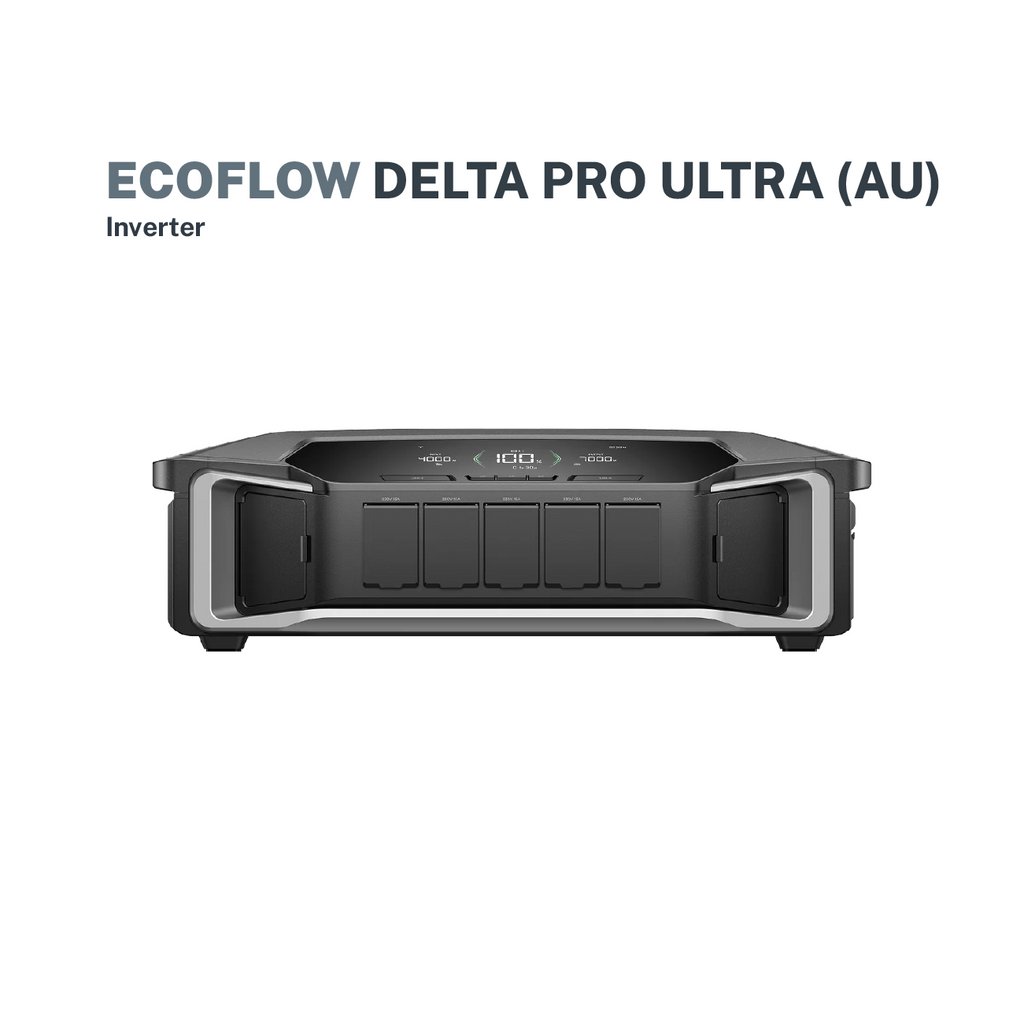

  • Delta Pro Ultra Inverter AU Version
  • Portable Stand
  • Disassembly and Assembly Tool
  • Solar to Low-PV Port Charging Cable
  • AC Charging Cable (C20)
  • Quick Start Guide
  • Warranty Card
Warranty Coverage

5 Year Warranty | Human Error Not Covered
